【FAQ】Fertilizer Machinery and Equipment Technology – Half-Wet Material Crusher

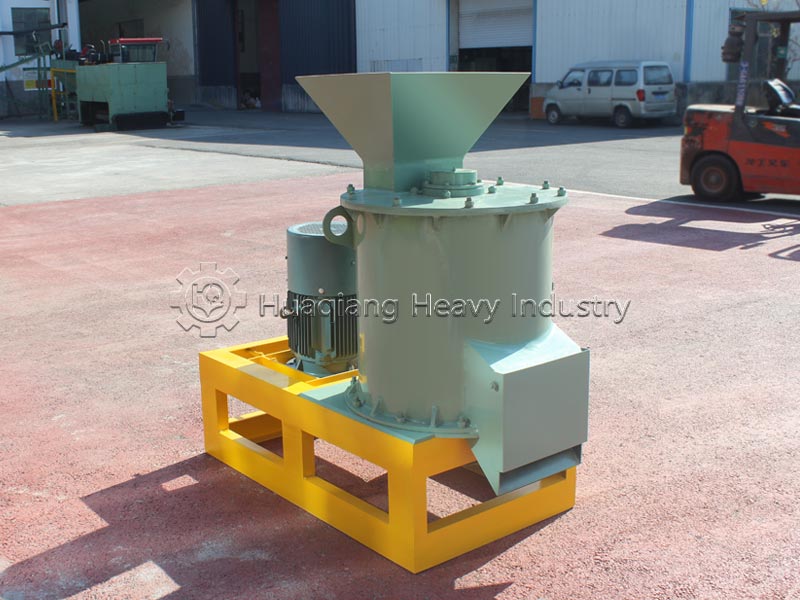

What is a Half-Wet Material Crusher?

A half-wet material crusher (also known as a half-wet material pulverizer or high-moisture material pulverizer) is a specialized crushing equipment designed for organic raw materials with a moisture content between 20% and 40% in the fertilizer production and processing field. It is widely used in organic fertilizer production, livestock and poultry manure treatment, and municipal sludge resource utilization, primarily processing fermented chicken manure, cow manure, pig manure, composted straw, mushroom residue, distiller’s grains, and municipal sludge.

The fundamental difference between this equipment and ordinary dry powder pulverizers is that traditional pulverizers are prone to screen clogging, wall adhesion, and machine stalling when processing high-moisture materials. The half-wet material crusher, through its special structural design, fundamentally solves this industry pain point.

What are the core advantages of a half-wet material crusher?

The core advantage of a half-wet material crusher lies in its special rotor design, which effectively prevents material adhesion and clogging during the crushing process. Specifically:

1. Screen-free design, completely eliminating clogging: Traditional crushers rely on screens for discharge, and high-moisture materials easily clog the screens, causing shutdowns. This half-wet material crushereliminates the traditional screen structure. The crushed fine material is discharged directly from the bottom or side of the chamber by centrifugal force, completely avoiding clogging caused by material adhesion. Regardless of the material’s moisture content or viscosity, there will be no screen clogging leading to shutdowns for cleaning, enabling continuous, uninterrupted operation.
2. Dual-stage rotor tandem crushing, doubling efficiency: This equipment adopts a dual-stage rotor crushing structure. After entering the crushing chamber, the material is first crushed into fine particles by the upper rotor, and then conveyed to the lower rotor for further crushing into fine powder, achieving a “material-to-material, hammer-to-material” effect. Its novel and rationally designed rotor structure results in twice the crushing effect of traditional products.
3. Multiple anti-sticking designs ensure stable operation: The inner wall of the crushing chamber is equipped with anti-stick lining plates and a self-cleaning device, effectively preventing wet material from sticking to the chamber wall and rotor. Some models also feature a Teflon anti-stick coating and built-in cleaning scrapers to remove residual material from the chamber walls in real time. The internal lining is made of high-strength, wear-resistant material, completely eliminating material sticking to the walls.
4. Two-way gap adjustment technology for flexible particle size control

The equipment employs two-way gap adjustment technology. After the hammers wear down, their position can be moved for continued use, and the gap between the hammers and the lining can be adjusted to control the output particle size. The output particle size can be flexibly adjusted between 20–80 mesh, precisely adapting to the needs of subsequent processes such as organic fertilizer granulation and fermentation.

Applicable Materials and Application Scenarios

The half-wet material crusher is suitable for half-wet organic materials with a moisture content between 20% and 40%, such as livestock and poultry manure, urban sludge, medicinal residue, distiller’s grains, damp straw, and mushroom residue. In organic fertilizer production, it can effectively shorten the process flow, reduce equipment investment, and save operating costs, making it an ideal machine for fertilizer production and processing units.

The half-wet material crusher machine is far more than a standalone size‑reduction tool — it is a critical enabler for modern fertilizer production lines. By efficiently processing high‑moisture organic wastes (20‑40% moisture) without clogging, it provides a homogeneous, fine‑powder feedstock that is essential for subsequent granulation and blending. In the npk fertilizer production process and the broader npk production process, this crusher ensures that even wet organic components (e.g., manure or sludge) can be uniformly mixed with inorganic salts such as urea, MAP, and potassium chloride, preventing particle segregation and improving nutrient distribution. When integrated with bio-organic fertilizer production technology, its screen‑free, low‑shear action preserves the viability of added microbial strains, while its adjustable output (20‑80 mesh) produces the ideal particle size for disc or drum granulation. For compound fertilizer production technology, the crusher’s anti‑stick design and dual‑stage rotor system reduce downtime and maintenance, directly boosting line efficiency. Ultimately, this machine bridges the gap between raw organic waste and high‑quality fertilizer granules — making it an indispensable asset for any integrated plant aiming to produce both organic‑based and compound fertilizers with consistent quality and stable throughput.
